In the world of connectors and audio-visual solutions, Neutrik stands as a true paragon of versatility and reliability. With a vast array of connectors catering to an extensive range of applications and industries, Neutrik has earned its reputation as a go-to choice for professionals seeking secure and dependable connections.
In this blog post, we’ll place the spotlight on two exceptionally notable connector families: Neutrik powerCON and speakON connectors, and highlight the new Neutrik XX Series powerCON Blue/Grey and speakON Cable Connectors.
Whether you’re involved in the world of audio, lighting, or any other field that demands unwavering performance, our aim is to provide you with an insightful guide to understanding, selecting, and utilizing Neutrik connectors to their fullest potential, so that you can optimally bridge the gap between power, signal, and performance.
The Neutrik Legacy
Neutrik’s legacy in the realm of connectors dates back to 1975 when the company was founded in Liechtenstein. Over the years, it has earned a reputation for producing high-quality, robust, and reliable connectors used across various industries.
Their commitment to innovation and meeting the evolving needs of professionals has solidified their position as a trusted name in the world of audio, video, lighting, and beyond.
Neutrik’s connectors are known for their durability and adherence to stringent quality standards, making them a top choice for demanding applications.
Versatility and Applications
Neutrik offers a wide array of connectors catering to a diverse set of applications. These connectors are utilized in fields such as professional audio, live entertainment, broadcasting, industrial settings, and more.
Whether it’s transmitting power, signal, or data, Neutrik connectors are designed to meet the stringent demands of various industries. They offer a solution for virtually any connection requirement, reflecting the company’s commitment to versatility and innovation.
How the powerCON and speakON XX Connectors Stand Out
Neutrik’s XX series of powerCON and speakON cable connectors, feature enhanced functionality, simplified assembly, improved power handling capabilities, and certification compliance with contemporary safety standards.
- Both powerCON and speakON XX series connectors feature a two-compound molded housing that enhances ergonomics and grip, employing a non-slip material. They are color-coded for enhanced visibility and boast an optimized assembly process.
- powerCON XX series connectors carry certifications including IEC EN 60320-1, UL 60320-1, and CSA C22.2 No. 60320-1, making them suitable for cordsets and devices certified to IEC 60799, UL817, and IEC/UL 62368-1.
- speakON XX series connectors are certified to IEC 61984, UL 1977, and CSA C22.2 No.182.3, with a current rating of up to 37 A RMS. Brown coloring designates 2-pole speakON connectors, while green coloring indicates 4-pole speakON connectors.
- powerCON cable connectors, exclusive to Neutrik, are rated for circuit breaking capacity (CBC) when mated to powerCON XX series receptacles NAC3FXXA(B).
- To meet modern safety standards, connectors are available in both -S variants for smaller cables (6-12 mm) and -L variants for larger cables (10-16 mm OD) and must be certified in combination with specific cables.
Powering Excellence with Neutrik powerCON Connectors
PowerCON connectors are a distinctive category in Neutrik’s catalog. Known for their robust build and secure locking mechanism, they are primarily used for transmitting power. These connectors ensure a stable and safe power connection, making them ideal for live events and professional audio-visual setups where reliable power delivery is critical. PowerCON connectors typically come in blue (for power input) and gray (for power output) variants.
Blue for Power Input
The blue Neutrik powerCON connectors, exemplified by models like NAC3FXXA, are designed to serve as power input connections. Their distinctive color-coding system allows for easy identification and minimizes the risk of incorrect connections. The blue connectors are the starting point of the power supply chain, typically connecting to power distribution units (PDUs) or other power sources.
- NAC3FXXA-W-S (power input, blue color, for cable OD 6-12 mm)
- NAC3FXXA-W-L (power input, blue color, for cable OD 10-16 mm)
Gray for Power Output
Conversely, the gray Neutrik powerCON connectors, such as the NAC3FXXB, are used for power output connections. These connectors are designed to ensure that the power flows safely from the source to the equipment, be it amplifiers, active speakers, or lighting fixtures. Like the blue connectors, the gray powerCON connectors also include a locking mechanism to ensure a secure connection.

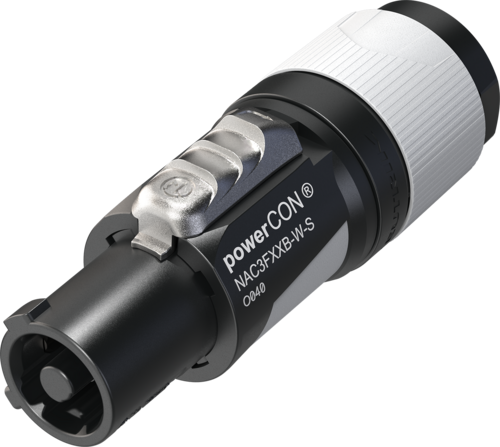

- NAC3FXXB-W-S (power output, grey color, for cable OD 6-12 mm)
- NAC3FXXB-W-L (power output, grey color, for cable OD 10-16 mm)
The combination of blue and gray connectors creates a secure and foolproof power distribution system.
Safety and Reliability
One of the standout features of powerCON connectors is their locking mechanism. This mechanism prevents accidental disconnections, a critical factor in live events where the show must go on without interruptions. Neutrik’s connectors have a reputation for their unwavering reliability, allowing professionals to focus on their work without worrying about power issues.
Installation and Compatibility
Neutrik powerCON connectors are designed with ease of installation in mind. They are engineered to provide a secure connection while remaining user-friendly, even in challenging environments. Additionally, powerCON connectors are compatible with a wide range of equipment commonly found in professional audio-visual setups, simplifying the integration of these connectors into existing systems.
Certifications and Standards
For peace of mind, users can rely on the fact that Neutrik powerCON connectors adhere to industry standards and certifications. These connectors are rigorously tested and designed to meet strict safety and performance requirements, ensuring that they can handle the power demands of professional applications.
Empowering Sound with Neutrik speakON Connectors
Neutrik’s speakON connectors play a vital role in the world of professional audio. They are engineered to deliver reliable and high-quality audio connections, making them a favorite among sound engineers, musicians, and audio technicians.
The speakON XX series connectors are certified to IEC 61984, UL 1977, and CSA C22.2 No.182.3 with current rated to 37 A RMS.
- Brown coloring on the connectors indicates 2-pole speakON
- Green coloring indicates 4-pole speakON
Versatile Speaker Connections
SpeakON connectors are primarily used to connect speakers to amplifiers and audio systems. They provide a secure and efficient way to transmit audio signals while minimizing the risk of signal loss or equipment damage. These connectors are the lifeline of sound reinforcement setups in various venues, from small clubs to large arenas.
The Neutrik Difference
One of the standout features of speakON connectors is their robust locking mechanism. This mechanism ensures that the connection between the speaker and the amplifier remains secure, even in high-vibration environments. Unlike traditional connectors, speakON connectors are designed to handle the rigors of live performances, ensuring uninterrupted sound quality.
Variants and Features
Neutrik offers various models of speakON connectors, each designed for specific use cases. Some connectors include additional features such as compatibility with different cable types and locking mechanisms for extra security. This variety allows users to choose the best connector for their unique audio needs.
Durability for the Road
SpeakON connectors are built to last. They are constructed with high-quality materials and are known for their durability. Musicians and sound engineers who are often on the road can rely on the resilience of speakON connectors to withstand the challenges of touring and live performances.
A Standard for the Stage
Neutrik speakON connectors have earned their place as an industry standard in professional audio. Sound engineers and musicians often specify speakON connectors because of their performance and reliability. These connectors have become synonymous with quality sound reinforcement, ensuring that every note and every word is heard clearly by the audience.
Comparing powerCON and speakON Connectors
PowerCON connectors are designed primarily for power connections. They are ideal for transmitting electrical power from sources like power distribution units (PDUs) to equipment such as amplifiers, active speakers, or lighting fixtures.
In contrast, speakON connectors are engineered specifically for audio applications. They are predominantly used for connecting speakers to amplifiers and audio systems, ensuring high-quality sound transmission.
PowerCON connectors are available in blue (for power input) and gray (for power output) variations. This color-coding system simplifies the identification of input and output connections, reducing the risk of incorrect connections.
SpeakON connectors are typically available in black or other dark colors. The latest XX Series speakON connectors sport green and brown colors. While color coding is not a distinguishing feature for speakON connectors, they are easily recognizable due to their unique form factor and locking mechanism.
PowerCON connectors feature a robust locking mechanism that ensures secure and reliable power connections. This is crucial in environments where accidental disconnections can disrupt operations or performances.
SpeakON connectors are also known for their reliable locking mechanism, designed to withstand vibrations and movement common in live music and sound reinforcement applications. The locking mechanism prevents unintentional disconnection and minimizes the risk of audio interruptions.
PowerCON connectors are designed to be resilient and are suitable for indoor and outdoor use. They often feature designs that provide protection against environmental factors like dust and moisture.
While speakON connectors are built to withstand the rigors of live performance, they are typically used in indoor settings. However, some variations may offer environmental protection features for more demanding conditions.
Variants and Models
The powerCON family includes a range of models, each with specific features and applications. Variants within the powerCON series cater to various power requirements and setup types.
SpeakON connectors also come in different models, including variations for different cable types and configurations. These models can be chosen based on specific audio requirements and equipment compatibility.
Real-World Applications and Case Studies
Understanding the practical applications of Neutrik’s powerCON and speakON connectors is vital to appreciate the impact they have in real-world scenarios. These connectors have become staples in various industries, playing crucial roles in powering shows, delivering high-quality sound, and ensuring seamless connectivity.
powerCON Case Study 1: Live Music Festival
Imagine a massive open-air music festival, where multiple stages host different acts simultaneously. To ensure the uninterrupted flow of power to amplifiers, lighting rigs, and sound equipment across the site, powerCON connectors come into play. Power distribution units equipped with powerCON connectors enable rapid setup and secure power connections. The locking mechanism prevents accidental disconnections, even in the midst of a high-energy performance. In this dynamic and demanding environment, powerCON connectors have proven their reliability time and again, contributing to the seamless execution of large-scale live events.
powerCON Case Study 2: Theatrical Production
In the world of theater, where precision and timing are paramount, powerCON connectors are trusted to provide the necessary power to lighting fixtures, audio equipment, and special effects. A case in point is a Broadway production that relies on the consistent power supply to create a visually stunning and immersive experience for the audience. The robust locking mechanism of powerCON connectors ensures that every performance unfolds without hitches, and the ease of installation facilitates quick set changes between scenes. This level of reliability is indispensable in the world of theater where the show must go on.
speakON Case Study 1: Arena Rock Concert
Picture a sold-out arena, with thousands of fans eagerly awaiting their favorite band. Behind the scenes, speakON connectors are the unsung heroes of the audio setup. They connect powerful amplifiers to massive speaker arrays, ensuring that every guitar riff and vocal note resonates through the venue with utmost clarity. The locking mechanism of speakON connectors plays a crucial role in preventing any interruptions, no matter how intense the vibrations or stage movements. In this high-energy atmosphere, where the sound quality can make or break the concert experience, speakON connectors have consistently delivered excellence.
speakON Case Study 2: House of Worship Sound System
In a more controlled environment, such as a house of worship, a reliable sound system is essential for delivering sermons and musical performances to congregations. SpeakON connectors are used to maintain a high level of sound quality and clarity in these settings. Their robust construction and secure locking mechanism ensure that the connection between amplifiers and speakers remains stable, even during long services or performances. The ease of use and consistent performance of speakON connectors allows houses of worship to focus on delivering their message without worrying about technical glitches.
In the fast-paced world of audio-visual technology, the importance of reliable and secure connections cannot be overstated. Neutrik, with its powerCON and speakON connectors, continues to be a steadfast partner for professionals who demand excellence in their setups. Whether you’re powering the stage with powerCON connectors or elevating sound quality with speakON connectors, Neutrik’s commitment to quality and innovation is evident.
So, whether you’re a seasoned sound engineer, a touring musician, or a lighting technician, these connectors offer peace of mind and the assurance of uninterrupted performance. The next time you find yourself in the spotlight or behind the scenes of an awe-inspiring production, remember that Neutrik is there, quietly empowering excellence through the world of connectors.
In every powerCON and speakON connection, Neutrik ensures that your show goes on, your sound is pristine, and your audience is left in awe. Connect, create, and experience the magic of Neutrik connectors.
